Toyota Car Door Panel Auto Part Mould
Mould name:Toyota Car door panel mould
Type: automotive injection mold
Core surface finish: 600# sandpaper polishing
Production Material: PP+EPDM
Cavity surface finish: Pattern finishing
No of Cavities: 1 x 1
Core Material: LKM 738H
Mold base steel: 1045
Type of gating: Valve gate and edge gate
Cavity Material: LKM 738H
Ejection system: ejector pin+ejector block +lifter
Slider and lifter material H13 with heat treatment
Lead time for T1: 60 days
mould life: 300,000 cycles

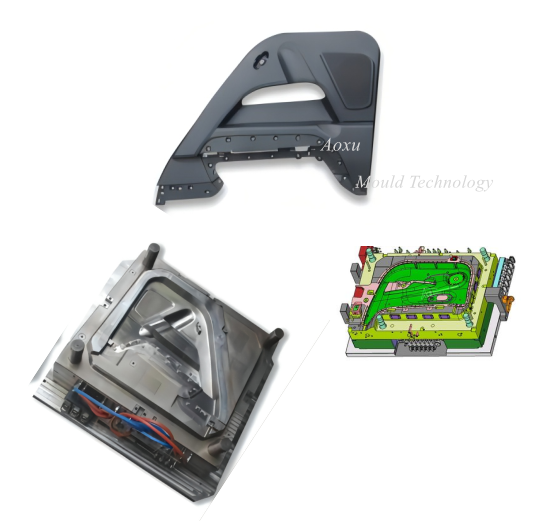

Car door panels are one important part of automobile interior parts. They are located on the inner side of automobile doors. This case is a car's left rear door panel, which is used to illustrate the design points and experience of automobile door panel injection molds.
The material of automobile door panels is PP + EPDM, and the shrinkage rate is generally 1.011. EPDM rubber has excellent resistance to ozone, heat and weathering, and can improve the elasticity of door panels. The external dimensions of the door panel are: 880 × 670.4 × 105.6mm.
How To Auto Part Mould Control Quality?
1.Mould Material Q/C
- Mould Steel Checking(Hardness, flaw detection)
- Mould Standard Spare Parts Checking(hardness, size, flaw checking)
2.Mould Making Process Q/C
Design checking of door panels(part design, mould design, mould engineering drawing)
Each part of mould's size checking after machining according to 2D drawing
Mould testing(check mould running condition)
3.Check
Check with customer's requirement again before auto part mould shipping.
