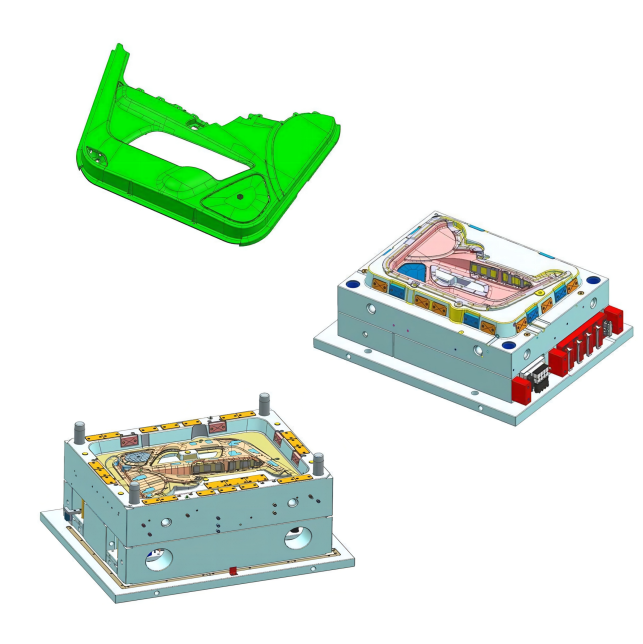

Automotive vehicle plastic auto Car Door Panel Plastic Mould
Automotive vehicle plastic auto Car Door Panel Plastic Mould
Mould Specification
Mould Specification
Mold Name: automotive vehicle plastic auto car door panel plastic mould
Core/Cavity Steel: P20
Mould Base: LKM
Mould Spare Parts: SKD 61
Cavity: Single
Injection System: Hot Runner
Runner: Yudo/DME/HUSkY
Mould Life: 1,000,000 shots
Plastic material: PP
Design Software: NX Siemens, PROE, Catia and Auto-CAD
Delivery Time: 90 days
Payment: By T/T
Key points and difficulties in auto door panel mould design and manufacturing
1. Production cycle of door panel is relatively short, but procurement time of mold base is long, which brings pressure to design order. It must have rich experience to accumulate procurement work ahead of schedule.
2. Such molds have many inclined tops, mold is ejected, reset is unbalanced, product capacity and inclined top are relatively moved. Therefore, it is necessary to add two return rods, at the same time increase thimble plate screws to prevent product deformation, product side should also be improved by adding measures such as adding a block and strengthening slanting top.
3. Elimination of fusion line. After auto door molding was tested, it was found that sintering line was obvious, and it was solved by improving position of gate and strengthening exhaust.
4. Since speaker net can be discharged after mold is closed, electric discharge machining time is long, so pay attention to relationship between assembly and processing of speaker net.
5. Deviation of template inclined top hole is large, and processing.
